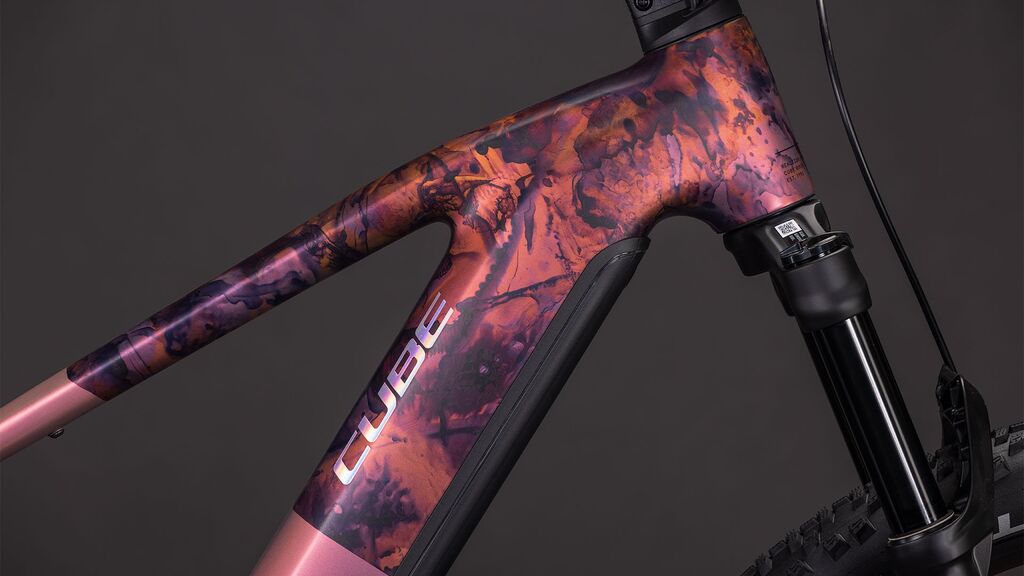

Rám |
Aluminium Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost148, Fully Integrated Battery, Advanced Internal Cable Routing, 1.5 Headtube, Kickstand/Fender/Carrier Mounting Points |
|
Velikost |
S, M, L, XL, XXL |
|
Motor |
Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System |
|
Ovládání |
Bosch LED Remote |
|
Baterie |
Bosch PowerTube 800 |
|
Display |
Bosch Kiox 500 |
|
Nabíječka |
Bosch 4A |
|
Přední vidlice |
Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm (27.5: 100mm) |
|
Brzdový systém |
Shimano XT BR-M8220, Hydr. Disc Brake (203/203) |
|
Přehazovačka |
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
|
Řazení |
Shimano XT SL-M8100-IR, 12-Speed |
|

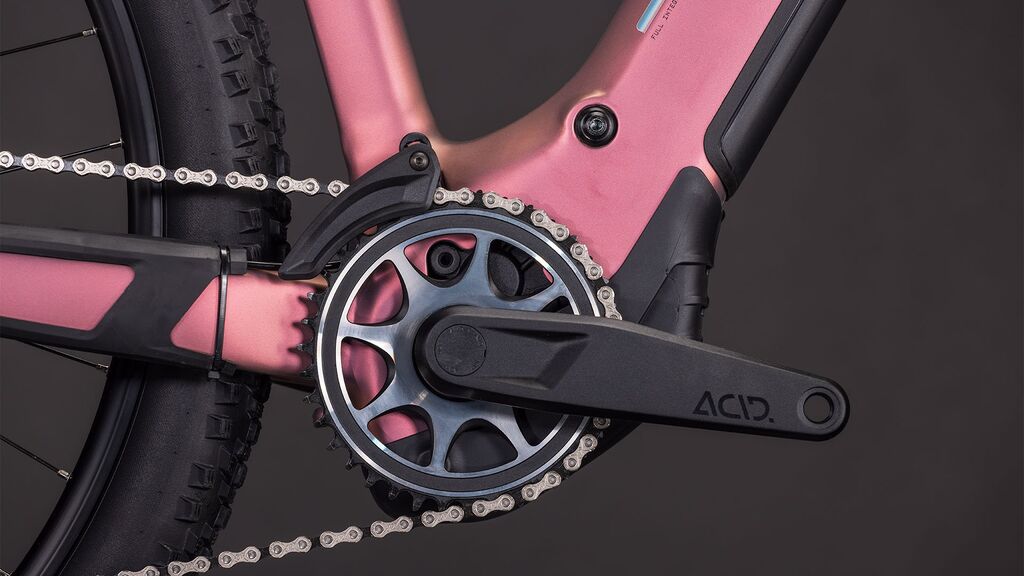

Kliky |
ACID MTB Hybrid Pro, 38T |
|
Kazeta |
Shimano XT CS-M8100, 10-51T |
|
Řetěz |
KMC e12 |
|
Hlavové složení |
ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), X-Connect Interface |
|
Představec |
CUBE Performance Stem E-MTB 35, FPI-Link |
|
Řídítka |
CUBE Rise Trail Bar 35 |
|
Gripy |
ACID Hybrid Perform |
|
Kola (set) |
Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
|
Pláště |
Schwalbe Smart Sam, Performance, Kevlar, 2.6 |
|
Sedlo |
ACID Sequence 160 |
|
Sedlovka |
CUBE Dropper Post, Handlebar Le |
