Rám |
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
|
Velikost |
Size Split: 27.5: S // 29: M L XL |
|
Motor |
Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System |
|
Ovládání |
Bosch System Controller, incl. Mini Remote |
|
Baterie |
Bosch PowerTube 800 |
|

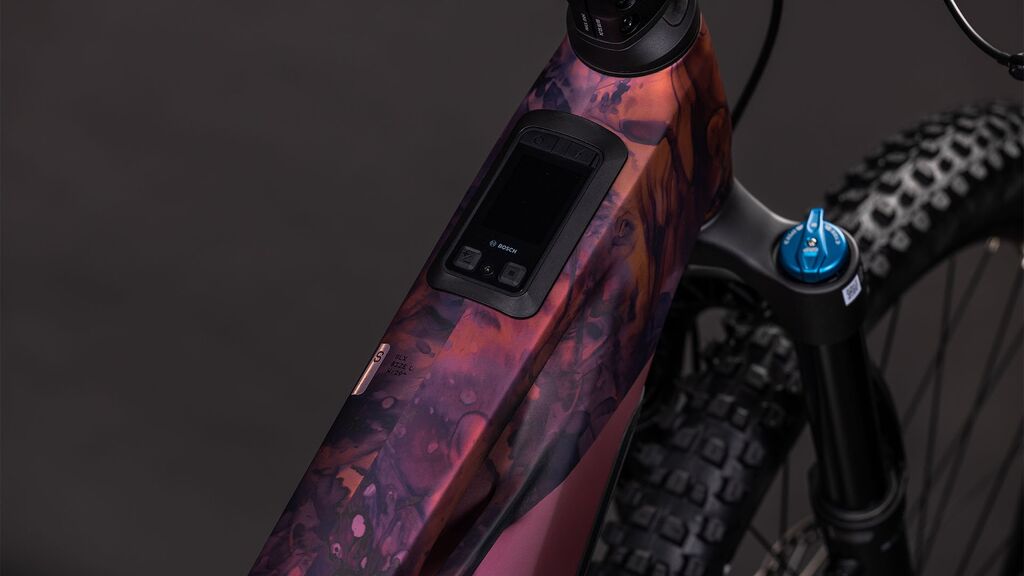

Display |
Bosch Kiox 400C |
|
Nabíječka |
Bosch 4A |
|

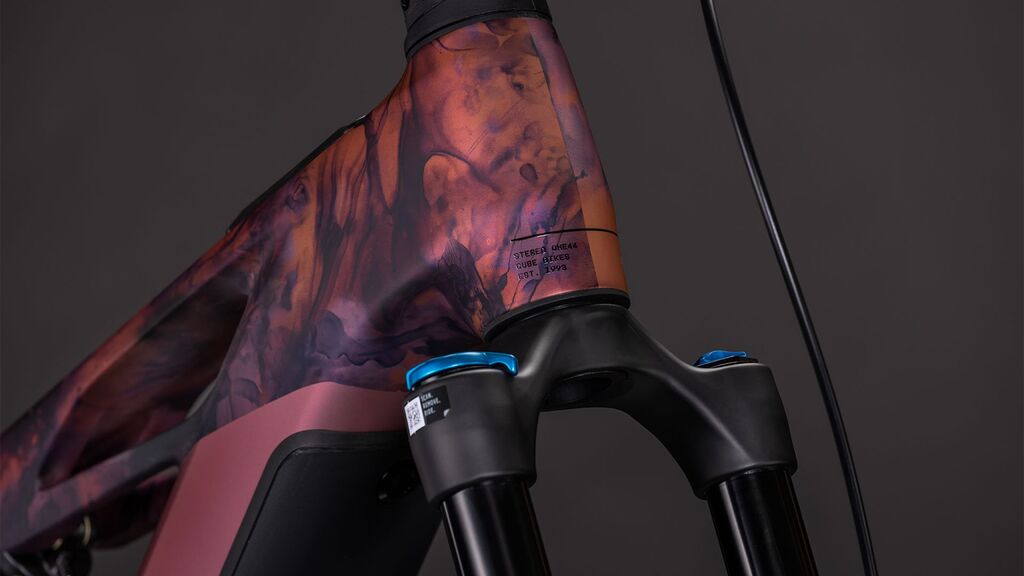

Přední vidlice |
Fox 36 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 150mm |
|
Tlumič |
Fox Float Performance, 230x60mm (27.5: 210x55mm), Adjustable LSR w/ 2-Pos. Lever |
|
Tlumič |
Hardware Front: 30x8mm, Rear: DU-Bushing 12.7mm |
|
Brzdový systém |
Shimano XT BR-M8220, Hydr. Disc Brake (203/203) |
|
Přehazovačka |
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
|
Řazení |
Shimano XT SL-M8100-IR, 12-Speed |
|

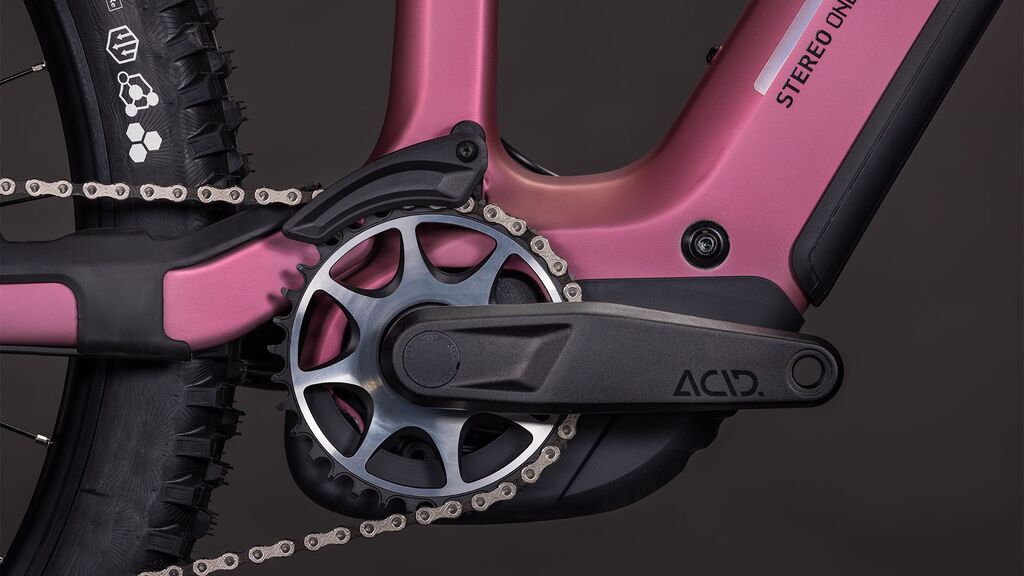

Kliky |
ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T |
|
Kazeta |
Shimano Deore CS-M6100, 10-51T |
|
Řetěz |
KMC e12 |
|
Hlavové složení |
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
|
Představec |
CUBE Performance Stem E-MTB 35, FPI-Link |
|
Řídítka |
CUBE Rise Trail Bar 35 |
|
Gripy |
ACID Disrupt |
|
Kola (set) |
Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
|
Přední plášť |
Conti Kryptotal Front, Enduro Soft, Tubeless Ready, 2.4 |
|
Zadní plášť |
Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4 |
|
Sedlo |
ACID Venec EMTB Trail 140 |
|
Sedlovka |
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
|
Sattelklemme |
CUBE Semi-Integrated |
|
Pedály |
ACID PP MTB |
|
Hmotnost |
24,3 kg |
|
Maximální zatížení |
160kg |
|
Maximální váha jezdce |
125kg |
